Lift light curtains compliant to EN81-20/50 Standard with self-test function

—   Up to 194 beams.
—   Self test function.

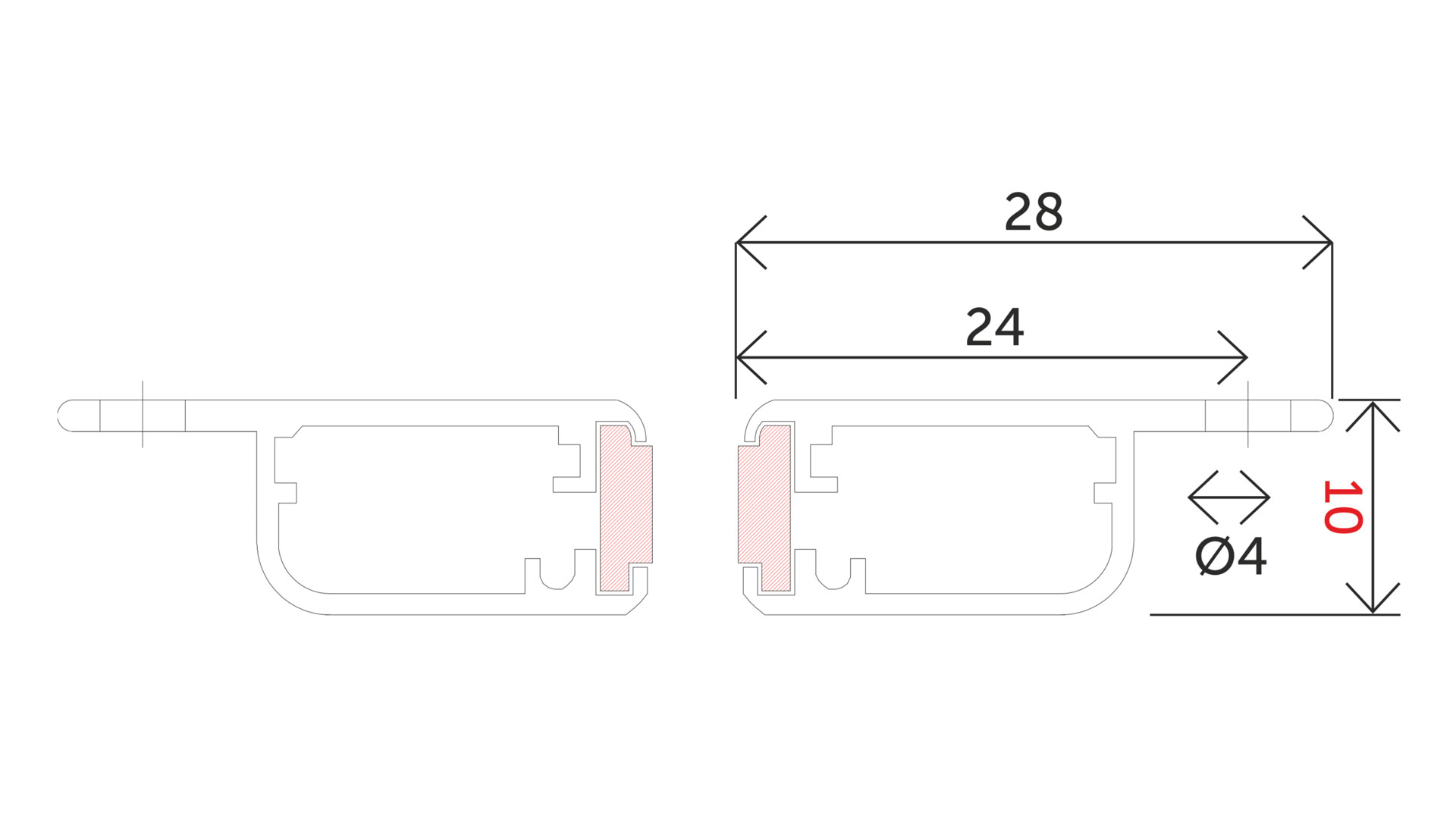

—   Size (WxDxH): 10x28x2000mm.
—   Detecting Height: 20mm to 1872mm.
—   Number of IR diodes: 40.
—   Scan beams (distance > 400mm): 194 beams.
—   Scan beams (distance < 400mm): 118 beams.
—   Opening: 0mm – 4000mm.
—   Ideal for both static and dynamic mounting.
—   Light Immunity: 100,000 LUX.
—   Operating Temperature: -20°C ~ +65°C.
—   Buzzer: after continuous detection for 15s buzzer on (when BUZZER SWITCH=ON).
—   Cable length: 4 mt.
—   Standard output: relay.
—   Test output: relay.
—   IP: 54.

—   B-LIFT 202-E / Power supply 220 VAC
—   B-LIFT 218-E / Power supply 12/24 VDC
—   B-LIFT 219-E / Power supply 12/24 VDC (galvanically isolated)

Earthing
Have you chosen to install Vega electronic products on a metal plate?
Caution: connect the plates to the earthing system. This will prevent malfunctioning or damage to electronic devices.

Product cleaning
How to clean Vega buttons With a cotton cloth and warm water.

Caution: Do not use chemicals, especially for plastic surfaces. Many Vega products are made of polycarbonate, ABS, methacrylate or nylon 66. Avoid cleaning products containing (even a small amount of) ammonia, hydrocarbons, caustic soda, hydrochloric acid, nitric acid, acetic acid, ethyl alcohol or methyl alcohol.
