Lift light curtains compliant to EN81-20/50 Standard and with transistor output, without power supply box
B-Lift-335
SECURITY / EN81 LIGHT CURTAINS
Focus
Main features
Model
Mechanical profile
Warnings
Focus
— Up to 194 beams.
— Transistor output.
— Automasking function.
— Cables without connectors.
— Without external power supply unit.
— Transistor output.
— Automasking function.
— Cables without connectors.
— Without external power supply unit.
Main features
— Size (WxDxH): 11×27,5x2000mm.
— Detecting Height: 20mm to 1872mm.
— Number of IR diodes: 40.
— Scan beams (distance > 400mm): 194 beams.
— Scan beams (distance < 400mm): 118 beams.
— Opening: 0mm – 4000mm.
— Ideal for both static and dynamic mounting.
— Light Immunity: 100,000 LUX.
— Operating Temperature: -20°C ~ +65°C.
— Cable length: 4 mt.
— Vandalism detection: 60 sec., 1 diode.
— Automasking function: 1635mm – 1800mm.
— Output: PNP-NC.
— IP: 54.
— Detecting Height: 20mm to 1872mm.
— Number of IR diodes: 40.
— Scan beams (distance > 400mm): 194 beams.
— Scan beams (distance < 400mm): 118 beams.
— Opening: 0mm – 4000mm.
— Ideal for both static and dynamic mounting.
— Light Immunity: 100,000 LUX.
— Operating Temperature: -20°C ~ +65°C.
— Cable length: 4 mt.
— Vandalism detection: 60 sec., 1 diode.
— Automasking function: 1635mm – 1800mm.
— Output: PNP-NC.
— IP: 54.
Model
— B-LIFT 335-A / Power supply 13-30 VDC

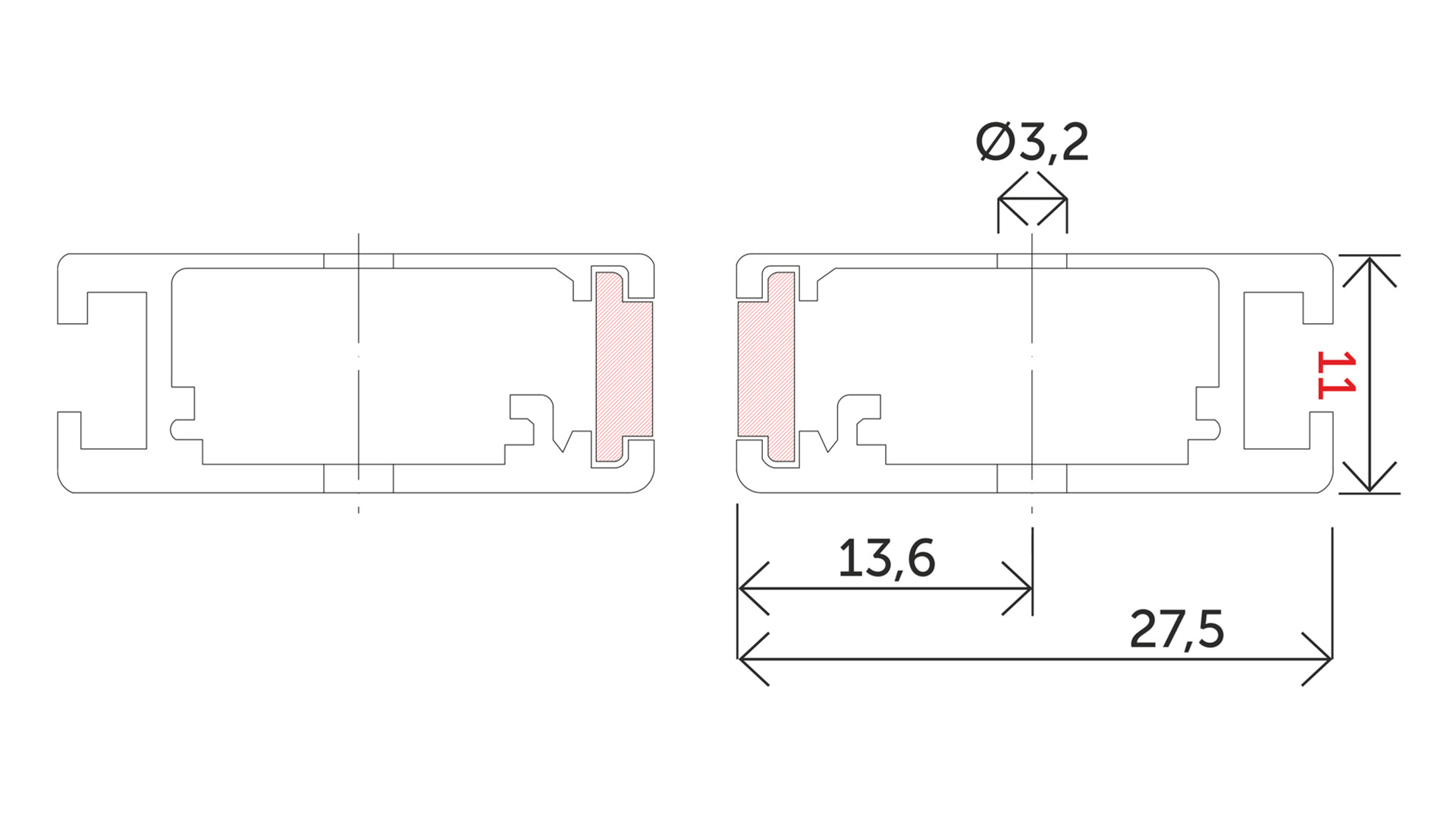

Mechanical profile
Warnings
Earthing
Have you chosen to install Vega electronic products on a metal plate?
Caution: connect the plates to the earthing system. This will prevent malfunctioning or damage to electronic devices.
Product cleaning
How to clean Vega buttons With a cotton cloth and warm water.
Caution: Do not use chemicals, especially for plastic surfaces. Many Vega products are made of polycarbonate, ABS, methacrylate or nylon 66. Avoid cleaning products containing (even a small amount of) ammonia, hydrocarbons, caustic soda, hydrochloric acid, nitric acid, acetic acid, ethyl alcohol or methyl alcohol.
Have you chosen to install Vega electronic products on a metal plate?
Caution: connect the plates to the earthing system. This will prevent malfunctioning or damage to electronic devices.
Product cleaning
How to clean Vega buttons With a cotton cloth and warm water.
Caution: Do not use chemicals, especially for plastic surfaces. Many Vega products are made of polycarbonate, ABS, methacrylate or nylon 66. Avoid cleaning products containing (even a small amount of) ammonia, hydrocarbons, caustic soda, hydrochloric acid, nitric acid, acetic acid, ethyl alcohol or methyl alcohol.
