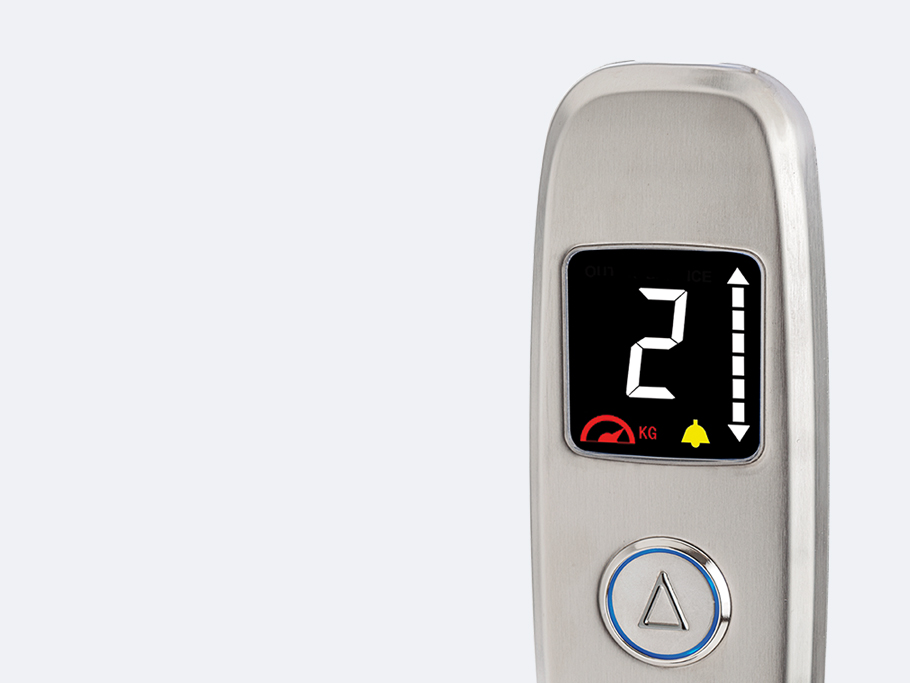

Landing LCD position indicator

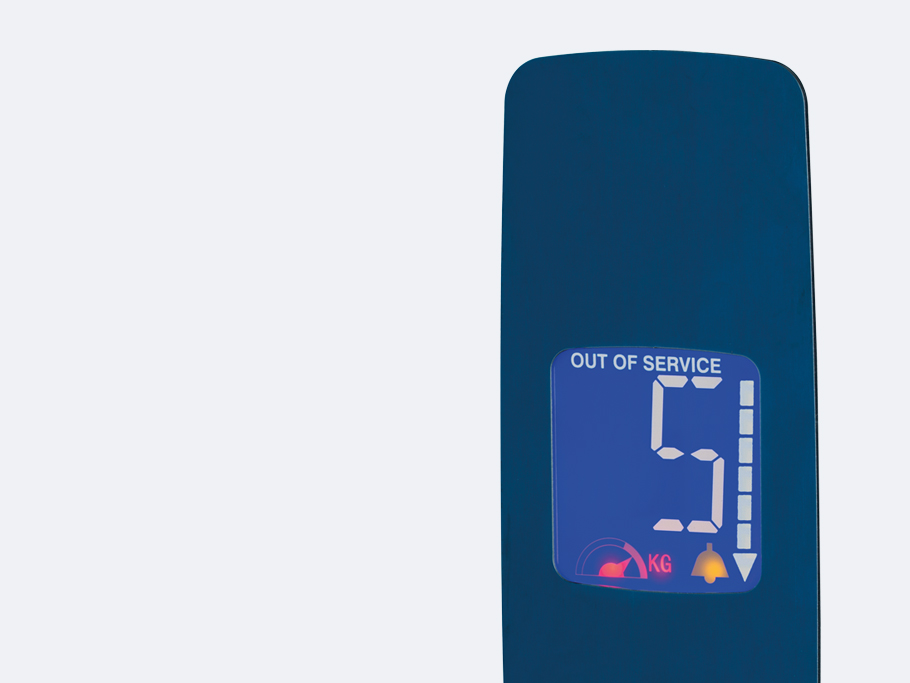

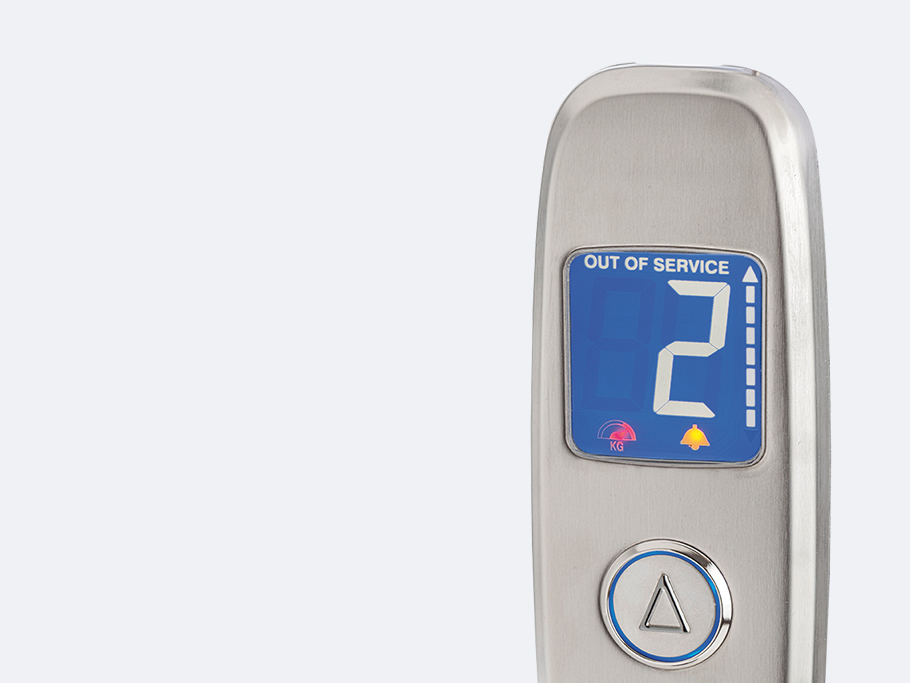

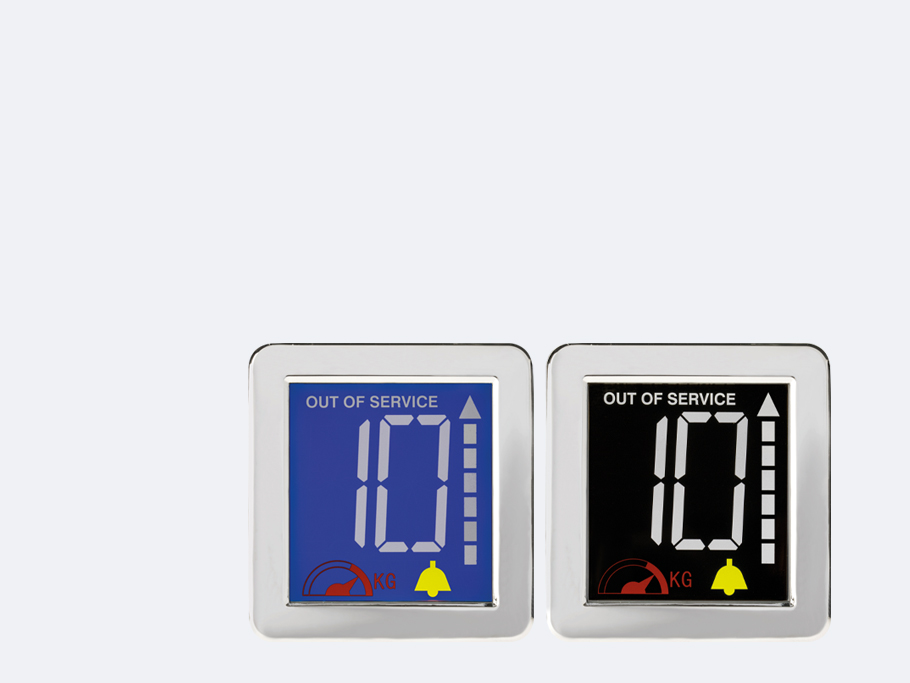

—   Colours: white LED on blue background or 5 different colours on black background.
—   Signals: floors, arrows, out of service, sent and acknowledged alarms and overload red signal.
—   Easy programming by a dedicated integrated keyboard.
—   Integrated and programmable three-tone chime.
—   32 stops in binary code, 11 stops 1 wire for floor, 64 stops in indipendent mode (magnetic sensors).
—   Communication: parallel, Vega serial, CAN and RS485.
—   Possibility to set binary, inverted binary, BCD, Gray, 7 segments codes and magnetic sensors.

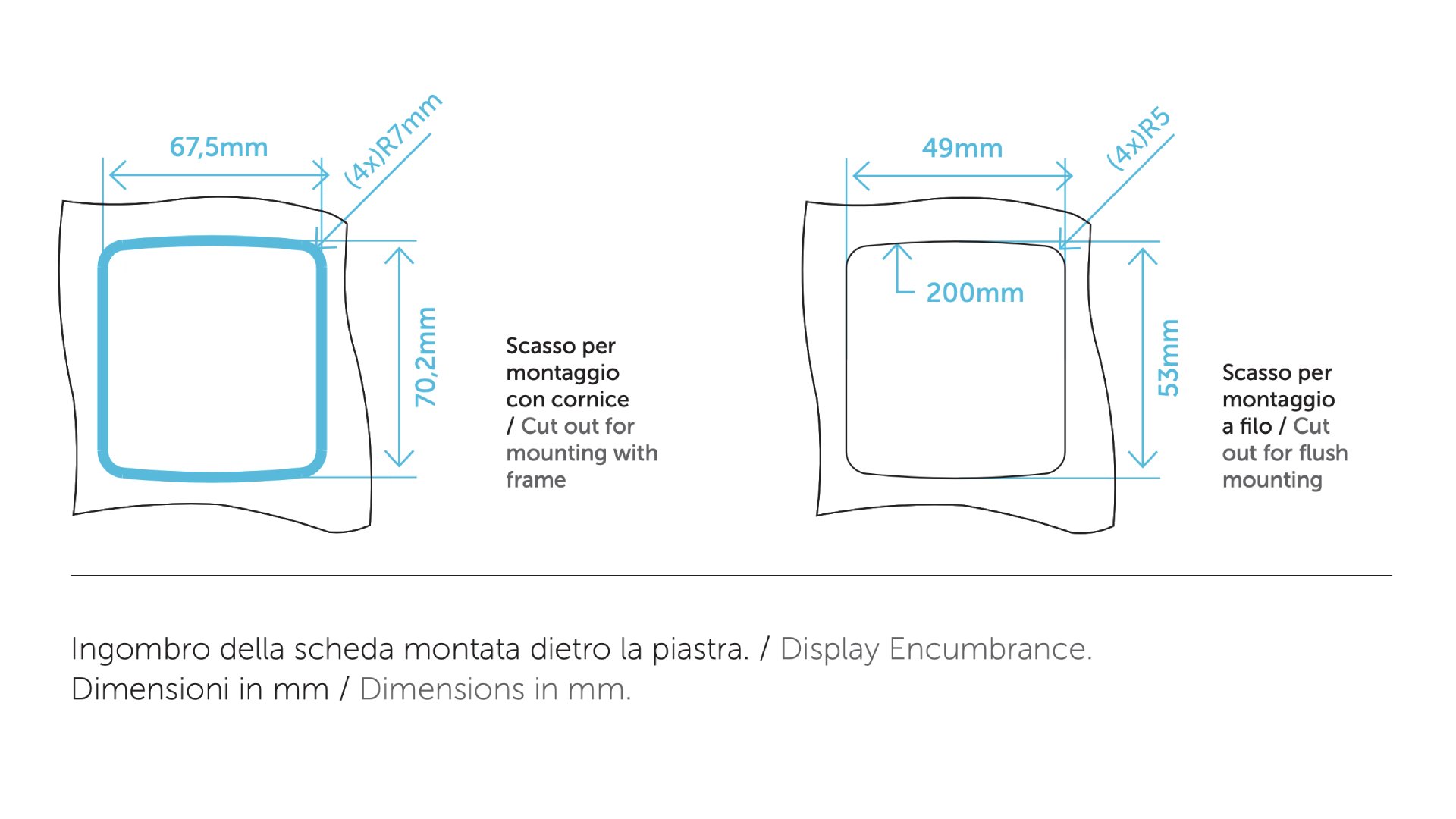

—   Fast Fixing: frontal mounting with frame or flush mounting on 1.2 and 2mm faceplates through soldered studs.
—   Wiring: screws or pre-wired connectors (AMP or JST).
—   Common: positive or negative ( selectable on-board option).
—   Power supply: 12/24Vdc +/- 10%.

—   Display with frame: 70×74 mm.
—   Display without frame: 50×54 mm.

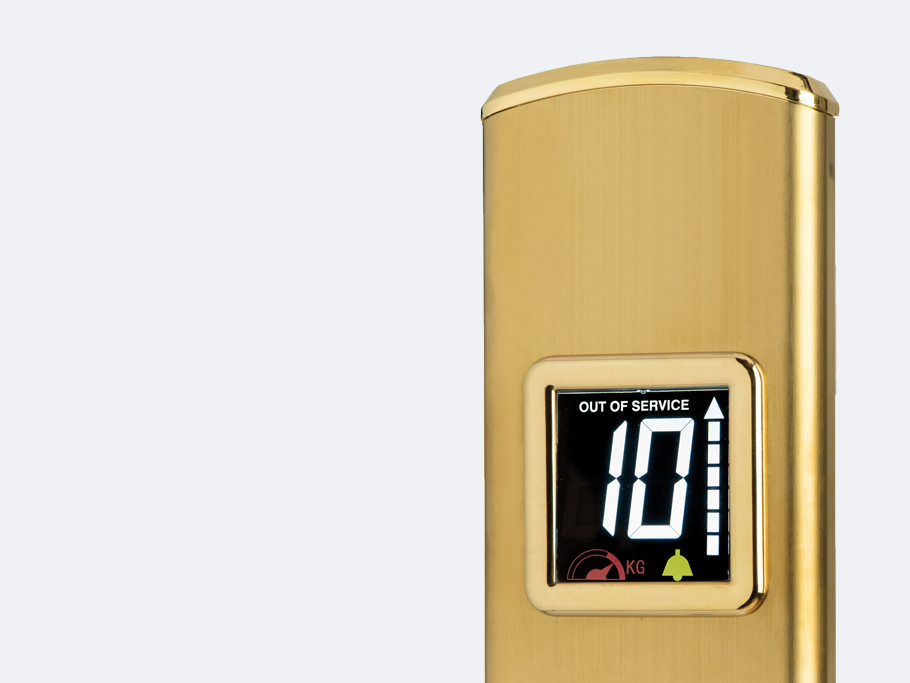

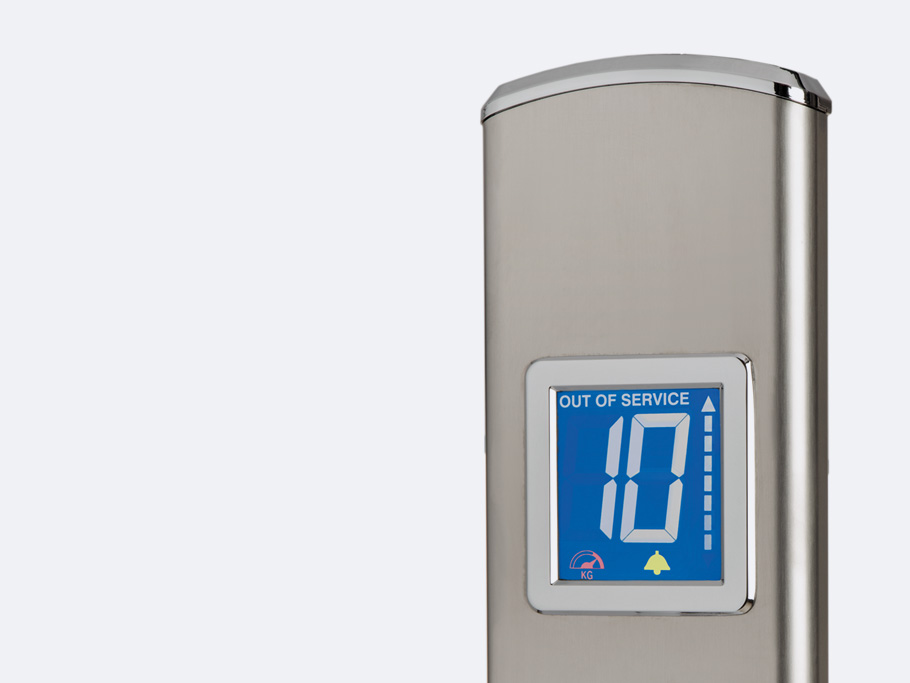

—   Frame: chrome, gold.

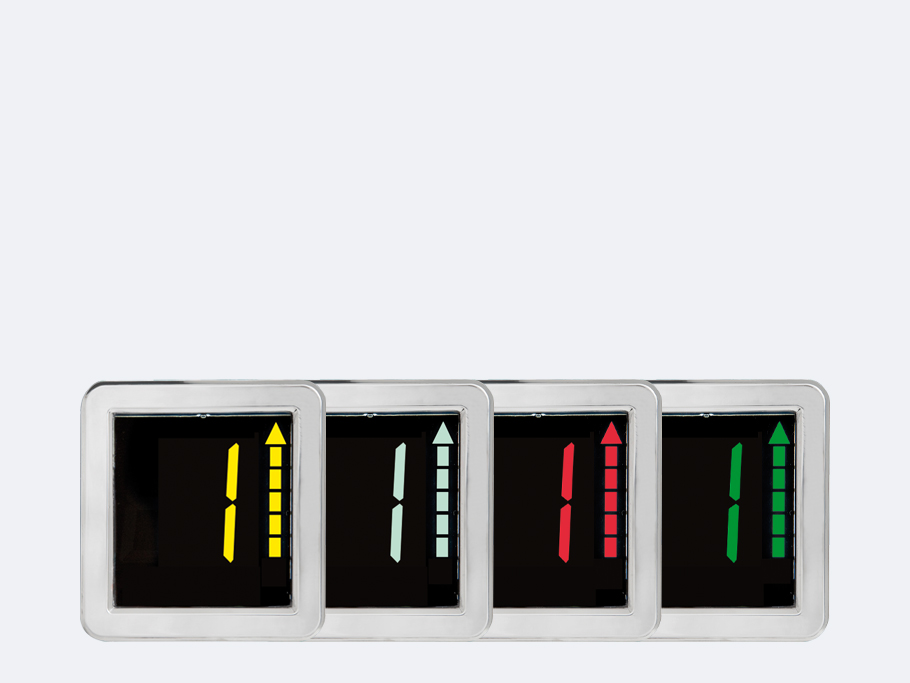

—   Display colours: white, yellow, aquamarine, red, green.
—   Lights: blu, black.

Earthing
Have you chosen to install Vega electronic products on a metal plate?
Caution: connect the plates to the earthing system. This will prevent malfunctioning or damage to electronic devices.

Product cleaning
How to clean Vega buttons With a cotton cloth and warm water.

Caution: Do not use chemicals, especially for plastic surfaces. Many Vega products are made of polycarbonate, ABS, methacrylate or nylon 66. Avoid cleaning products containing (even a small amount of) ammonia, hydrocarbons, caustic soda, hydrochloric acid, nitric acid, acetic acid, ethyl alcohol or methyl alcohol.
