LCD position indicator for vertical mounting

—   LCD model: indicator lcd available in blue or black background.

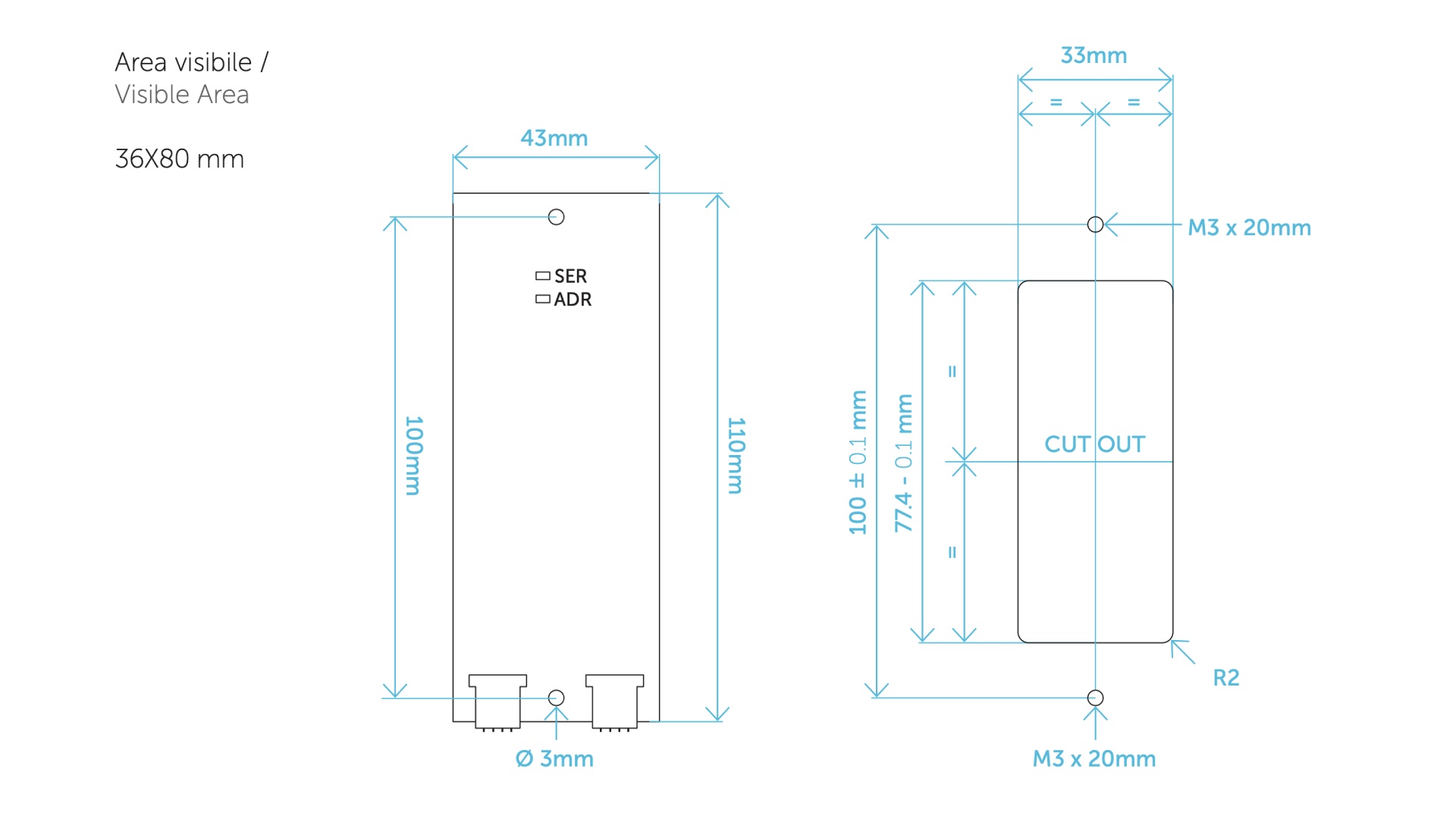

—   Fast Fixing: flush mounting on 1.2 and 2mm faceplates through soldered studs.
—   Screen: lens polycarbonate (shock-proof and anti-crash).
—   Colours: white LED on blue or black background.
—   Wiring: screws or pre-wired connectors.
—   Power supply: 12/24Vdc +/- 10%.
—   Signals: floors, arrows.
—   Integrated and programmable three-tone chime.
—   Up and down arrow (40mm).
—   Available in VEGA serial, CAN and RS485 version.
—   Optional: floor button function.

VEGA SERIAL
—   LCD410-SER: blue.
—   LCD419-SER: black.

RS485
—   LLCD410-485: blue.
—   LCD419-485: black.

CAN —   LCD410-CAN: blue.
—   LCD419-CAN: black.

Earthing
Have you chosen to install Vega electronic products on a metal plate?
Caution: connect the plates to the earthing system. This will prevent malfunctioning or damage to electronic devices.

Product cleaning
How to clean Vega buttons With a cotton cloth and warm water.

Caution: Do not use chemicals, especially for plastic surfaces. Many Vega products are made of polycarbonate, ABS, methacrylate or nylon 66. Avoid cleaning products containing (even a small amount of) ammonia, hydrocarbons, caustic soda, hydrochloric acid, nitric acid, acetic acid, ethyl alcohol or methyl alcohol.
